Getting Started
Caution
本章内容已过时，请结合 Example 和源码来了解
Warning
注意：
当前本章内容非常不完善，结构不清晰、内容不完整，目前建议结合 Example 和源码来了解。
在 Ranim 中，定义并渲染/预览一段动画的代码基本长成下面这个样子：
fn scene_name(r: &mut RanimScene) {
let _r_cam = r.insert_and_show(CameraFrame::default());
let r_square = r.insert(square);
r.timeline_mut(&r_square)
.play_with(|square| square.fade_in())
.forward(0.5);
// ...
}
fn main() {
// Scene and output defination
let scene = Scene {
name: "scene_name".to_string(),
constructor: scene_name,
config: SceneConfig {
clear_color: "#000000" // Or any css color
},
outputs: vec![
Output {
/// The width of the output texture in pixels.
width: 1280,
height: 720,
fps: 30,
format: OutputFormat::Mp4,
..Default::default()
}
],
};
// Render a scene, the seccond argument is the number of frame buffers used during rendering.
ranim::cmd::render_scene(&scene, 2);
// Needs "preview" feature
ranim::cmd::preview_scene(&scene);

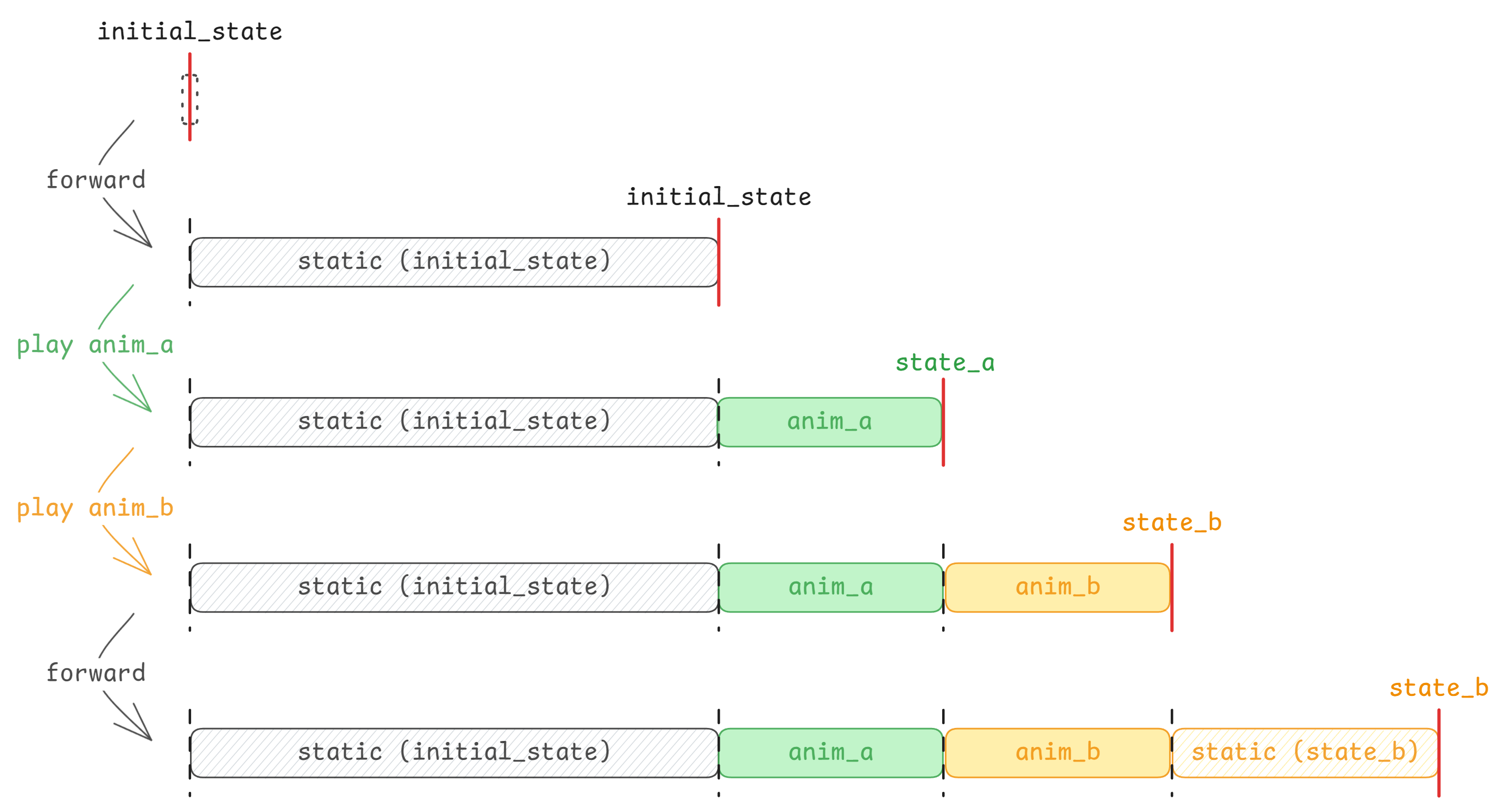

}形如 fn(&mut RanimScene) 的函数被称为场景函数，在其中可以通过 RanimScene 这个核心结构来对时间线进行操作以编码动画。
此外，ranim 提供了一些过程宏来简化 Scene 结构的定义：
#[scene(clear_color = "#000000")]
#[output(width = 1280, height = 720, fps = 30, format = "mp4")]
fn scene_name(r: &mut RanimScene) {
let _r_cam = r.insert_and_show(CameraFrame::default());
let r_square = r.insert(square);
r.timeline_mut(&r_square)
.play_with(|square| square.fade_in())
.forward(0.5);
// ...
}
fn main() {
// Render a scene, use 2 frame buffers
ranim::cmd::render_scene!(scene_name);
// Needs "preview" feature
ranim::cmd::preview_scene!(scene_name);
}会在一个同名模块内定义一个同名函数返回对应的 Scene，宏的内部是这样的：
mod scene;
mod utils;
use proc_macro::TokenStream;
use proc_macro_crate::{FoundCrate, crate_name};
use proc_macro2::Span;
use quote::quote;
use syn::{Data, DeriveInput, Fields, Ident, ItemFn, parse_macro_input};
use crate::scene::parse_scene_attrs;
const RANIM_CRATE_NAME: &str = “ranim”;
fn ranim_path() -> proc_macro2::TokenStream {
match (
crate_name(RANIM_CRATE_NAME),
std::env::var(“CARGO_CRATE_NAME”).as_deref(),
) {
(Ok(FoundCrate::Itself), Ok(RANIM_CRATE_NAME)) => quote!(crate),
(Ok(FoundCrate::Name(name)), _) => {
let ident = Ident::new(&name, Span::call_site());
quote!(::#ident)
}
_ => quote!(::ranim),
}
}
fn ranim_core_path() -> proc_macro2::TokenStream {
if let Ok(res) = crate_name(“ranim-core”) {
match (res, std::env::var(“CARGO_CRATE_NAME”).as_deref()) {
(FoundCrate::Itself, Ok(“ranim-core”) | Ok(“ranim_core”)) => return quote!(crate),
(FoundCrate::Name(name), _) => {
let ident = Ident::new(&name, Span::call_site());
return quote!(::#ident);
}
_ => (),
}
} else if let Ok(res) = crate_name(“ranim”) {
match (res, std::env::var(“CARGO_CRATE_NAME”).as_deref()) {
(FoundCrate::Itself, Ok(“ranim”)) => return quote!(crate::core),
(FoundCrate::Name(name), _) => {
let ident = Ident::new(&name, Span::call_site());
return quote!(::#ident::core);
}
_ => (),
}
}
ranim_path()
}
/// 解析单个属性（#[scene(…)] / / #[output(…)]）
#[derive(Default)]
struct SceneAttrs {
name: Option, // #[scene(name = “…”)]
clear_color: Option, // #[scene(clear_color = “#000000”)]
wasm_demo_doc: bool, // #[wasm_demo_doc]
outputs: Vec, // #[output(…)]
}
/// 一个 #[output(…)] 里的字段
#[derive(Default)]
struct OutputDef {
width: u32,
height: u32,
fps: u32,
save_frames: bool,
name: Option,
dir: String,
format: Option,
}
// MARK: scene
#[proc_macro_attribute]
pub fn scene(args: TokenStream, input: TokenStream) -> TokenStream {
let ranim = ranim_path();
let input_fn = parse_macro_input!(input as ItemFn);
let attrs = parse_scene_attrs(args, input_fn.attrs.as_slice()).unwrap();
let fn_name = &input_fn.sig.ident;
let vis = &input_fn.vis;
let fn_body = &input_fn.block;
let doc_attrs: Vec<_> = input_fn
.attrs
.iter()
.filter(|attr| attr.path().is_ident(“doc”))
.collect();
// 场景名称
let scene_name = attrs.name.unwrap_or_else(|| fn_name.to_string());
// StaticSceneConfig
let clear_color = attrs.clear_color.unwrap_or(“#333333ff”.to_string());
let scene_config = quote! {
#ranim::StaticSceneConfig {
clear_color: #clear_color,
}
};
// StaticOutput 列表
let mut outputs = Vec::new();
for OutputDef {
width,
height,
fps,
save_frames,
name,
dir,
format,
} in attrs.outputs
{
let name_token = match name.as_deref() {
Some(n) if !n.is_empty() => quote! { Some(#n) },
_ => quote! { None },
};
let format_token = match format.as_deref() {
Some(“mp4”) | None => quote! { #ranim::OutputFormat::Mp4 },
Some(“webm”) => quote! { #ranim::OutputFormat::Webm },
Some(“mov”) => quote! { #ranim::OutputFormat::Mov },
Some(“gif”) => quote! { #ranim::OutputFormat::Gif },
Some(other) => panic!(“unknown output format: {other:?}”),
};
outputs.push(quote! {
#ranim::StaticOutput {
width: #width,
height: #height,
fps: #fps,
save_frames: #save_frames,
name: #name_token,
dir: #dir,
format: #format_token,
}
});
}
if outputs.is_empty() {
outputs.push(quote! {
#ranim::StaticOutput::DEFAULT
});
}
let doc = if attrs.wasm_demo_doc {
quote! {
#[doc = concat!(“<canvas id="ranim-app-”, stringify!(#fn_name), “" width="1280" height="720" style="width: 100%;">”)]
#[doc = concat!(“<script type="module">”)]
#[doc = concat!(“ const { find_scene, preview_scene } = await ranim_examples;“)]
#[doc = concat!(“ preview_scene(find_scene("“, stringify!(#fn_name), “"));”)]
#[doc = “”]
}
} else {
quote!
};
let static_output_name = syn::Ident::new(“__OUTPUTS”, fn_name.span());
let static_scene_name = syn::Ident::new(“__SCENE”, fn_name.span());
let output_cnt = outputs.len();
let scene = quote! {
#ranim::StaticScene {
name: #scene_name,
constructor: super::#fn_name,
config: #scene_config,
outputs: &#static_output_name,
}
};
let expanded = quote! {
#doc
#(#doc_attrs)*
#vis fn #fn_name(r: &mut #ranim::RanimScene) #fn_body
#[doc(hidden)]
#vis mod #fn_name {
/// The static outputs.
pub static #static_output_name: [#ranim::StaticOutput; #output_cnt] = [#(#outputs),*];
/// The static scene descriptor.
pub static #static_scene_name: #ranim::StaticScene = #scene;
#ranim::inventory::submit!{
#scene
}
pub fn scene() -> #ranim::Scene {
#ranim::Scene::from(&#static_scene_name)
}
}
};
TokenStream::from(expanded)
}
/// Define a video output.
///
/// Default: 1920x1080 60fps, save_frames = false
///
/// Available attributes:
/// - width: output width in pixels
/// - height: output height in pixels
/// - fps: frames per second
/// - save_frames: save frames to disk
/// - dir: directory for output
#[proc_macro_attribute]
pub fn output(_: TokenStream, _: TokenStream) -> TokenStream {
TokenStream::new()
}
// #[proc_macro_attribute]
// pub fn preview(_: TokenStream, _: TokenStream) -> TokenStream {
// TokenStream::new()
// }
#[proc_macro_attribute]
pub fn wasm_demo_doc(_attr: TokenStream, _: TokenStream) -> TokenStream {
TokenStream::new()
}
// MARK: derive Traits
#[proc_macro_derive(Fill)]
pub fn derive_fill(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(input, quote! {#core::traits::Fill}, |field_positions| {
quote! {
fn set_fill_opacity(&mut self, opacity: f32) -> &mut Self {
#(
self.#field_positions.set_fill_opacity(opacity);
)*
self
}
fn fill_color(&self) -> #core::color::AlphaColor<#core::color::Srgb> {
[#(self.#field_positions.fill_color(), )*].first().cloned().unwrap()
}
fn set_fill_color(&mut self, color: #core::color::AlphaColor<#core::color::Srgb>) -> &mut Self {
#(
self.#field_positions.set_fill_color(color);
)*
self
}
}
})
}
#[proc_macro_derive(Stroke)]
pub fn derive_stroke(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(input, quote! {#core::traits::Stroke}, |field_positions| {
quote! {
fn stroke_color(&self) -> #core::color::AlphaColor<#core::color::Srgb> {
[#(self.#field_positions.stroke_color(), )*].first().cloned().unwrap()
}
fn apply_stroke_func(&mut self, f: impl for<’a> Fn(&’a mut [#core::components::width::Width])) -> &mut Self {
#(
self.#field_positions.apply_stroke_func(&f);
)*
self
}
fn set_stroke_color(&mut self, color: #core::color::AlphaColor<#core::color::Srgb>) -> &mut Self {
#(
self.#field_positions.set_stroke_color(color);
)*
self
}
fn set_stroke_opacity(&mut self, opacity: f32) -> &mut Self {
#(
self.#field_positions.set_stroke_opacity(opacity);
)*
self
}
}
})
}
#[proc_macro_derive(Partial)]
pub fn derive_partial(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(input, quote! {#core::traits::Partial}, |field_positions| {
quote! {
fn get_partial(&self, range: std::ops::Range) -> Self {
Self {
#(
#field_positions: self.#field_positions.get_partial(range.clone()),
)*
}
}
fn get_partial_closed(&self, range: std::ops::Range) -> Self {
Self {
#(
#field_positions: self.#field_positions.get_partial(range.clone()),
)*
}
}
}
})
}
#[proc_macro_derive(Empty)]
pub fn derive_empty(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
let input = parse_macro_input!(input as DeriveInput);
let name = &input.ident;
let generics = &input.generics;
let (impl_generics, ty_generics, where_clause) = generics.split_for_impl();
let fields = match &input.data {
Data::Struct(data) => &data.fields,
_ => panic!(“Empty can only be derived for structs”),
};
let field_impls = match fields {
Fields::Named(fields) => {
let (field_names, field_types): (Vec<>, Vec<>) =
fields.named.iter().map(|f| (&f.ident, &f.ty)).unzip();
quote! {
Self {
#(
#field_names: #field_types::empty(),
)*
}
}
}
Fields::Unnamed(fields) => {
let field_types = fields.unnamed.iter().map(|f| &f.ty);
quote! {
Self (
#(
#field_types::empty(),
)*
)
}
}
Fields::Unit => quote! {},
};
let expanded = quote! {
impl #impl_generics #core::traits::Empty for #name #ty_generics #where_clause {
fn empty() -> Self {
#field_impls
}
}
};
TokenStream::from(expanded)
}
#[proc_macro_derive(Opacity)]
pub fn derive_opacity(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(input, quote! {#core::traits::Opacity}, |field_positions| {
quote! {
fn set_opacity(&mut self, opacity: f32) -> &mut Self {
#(
self.#field_positions.set_opacity(opacity);
)*
self
}
}
})
}
#[proc_macro_derive(Alignable)]
pub fn derive_alignable(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(
input,
quote! {#core::traits::Alignable},
|field_positions| {
quote! {
fn is_aligned(&self, other: &Self) -> bool {
#(
self.#field_positions.is_aligned(&other.#field_positions) &&
)* true
}
fn align_with(&mut self, other: &mut Self) {
#(
self.#field_positions.align_with(&mut other.#field_positions);
)*
}
}
},
)
}
#[proc_macro_derive(Interpolatable)]
pub fn derive_interpolatable(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(
input,
quote! {#core::traits::Interpolatable},
|field_positions| {
quote! {
fn lerp(&self, other: &Self, t: f64) -> Self {
Self {
#(
#field_positions: #core::traits::Interpolatable::lerp(&self.#field_positions, &other.#field_positions, t),
)*
}
}
}
},
)
}
#[proc_macro_derive(ShiftTransform)]
pub fn derive_shift_impl(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(
input,
quote! {#core::traits::ShiftTransform},
|field_positions| {
quote! {
fn shift(&mut self, shift: #core::glam::DVec3) -> &mut Self {
#(self.#field_positions.shift(shift);)*
self
}
}
},
)
}
#[proc_macro_derive(RotateTransform)]
pub fn derive_rotate_impl(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(
input,
quote! {#core::traits::RotateTransform},
|field_positions| {
quote! {
fn rotate_on_axis(&mut self, axis: #core::glam::DVec3, angle: f64) -> &mut Self {
#(self.#field_positions.rotate_on_axis(axis, angle);)*
self
}
}
},
)
}
#[proc_macro_derive(ScaleTransform)]
pub fn derive_scale_impl(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(
input,
quote! {#core::traits::ScaleTransform},
|field_positions| {
quote! {
fn scale(&mut self, scale: #core::glam::DVec3) -> &mut Self {
#(self.#field_positions.scale(scale);)*
self
}
}
},
)
}
#[proc_macro_derive(PointsFunc)]
pub fn derive_point_func(input: TokenStream) -> TokenStream {
let core = ranim_core_path();
impl_derive(
input,
quote! {#core::traits::PointsFunc},
|field_positions| {
quote! {
fn apply_points_func(&mut self, f: impl for<’a> Fn(&’a mut [DVec3])) -> &mut Self {
#(self.#field_positions.apply_points_func(f);)*
self
}
}
},
)
}
fn impl_derive(
input: TokenStream,
trait_path: proc_macro2::TokenStream,
impl_token: impl Fn(Vec<proc_macro2::TokenStream>) -> proc_macro2::TokenStream,
) -> TokenStream {
let input = parse_macro_input!(input as DeriveInput);
let name = &input.ident;
let generics = &input.generics;
let (impl_generics, ty_generics, where_clause) = generics.split_for_impl();
let fields = match &input.data {
Data::Struct(data) => &data.fields,
_ => panic!(“Can only be derived for structs”),
};
let field_positions = get_field_positions(fields)
.ok_or(“cannot get field from unit struct”)
.unwrap();
let impl_token = impl_token(field_positions);
let expanded = quote! {
impl #impl_generics #trait_path for #name #ty_generics #where_clause {
#impl_token
}
};
TokenStream::from(expanded)
}
fn get_field_positions(fields: &Fields) -> Option<Vec<proc_macro2::TokenStream>> {
match fields {
Fields::Named(fields) => Some(
fields
.named
.iter()
.map(|f| {
let pos = &f.ident;
quote!
})
.collect::<Vec<_>>(),
),
Fields::Unnamed(fields) => Some(
(0..fields.unnamed.len())
.map(syn::Index::from)
.map(|i| {
quote!
})
.collect::<Vec<_>>(),
),
Fields::Unit => None,
}
}
支持的属性：
#[scene]：为场景函数生成一个对应的static <scene_name>_scene: &'static Scene，包含了场景名称、函数指针、场景设置、输出设置（通过#[output]来设置）等信息。 可以配置一些属性：#[scene(name = "...")]：为场景指定一个名称，默认与函数名相同。#[scene(clear_color = "#ffffffff")]：为场景指定一个清除颜色，默认值为#333333ff。#[output]：为场景添加一个输出： 输出的文件名<output_name>会被命名为<scene_name>_<width>x<height>_<frame_rate>。#[output(dir = "...")]：设置相对于.的输出目录，也可以是绝对路径，默认是./output#[output(width = 1920)]：设置输出宽度#[output(height = 1080)]：设置输出高度#[output(fps = 60)]：设置输出帧率#[output(save_frames = true)]：设置是否保存每一帧（保存在<dir>/<output_name>-frames/下）#[output(format = "mp4")]：设置输出格式mp4,webm,mov,gif
使用 ranim-cli 可以方便的对场景进行预览、渲染：
Important
注意：
如果想要使用 ranim-cli，需要为
crate-type添加dylib。
-
ranim preview：调用 Cargo 构建指定的 target，然后启动一个预览应用加载编译出的 dylib，并监听改动进行重载。ranim preview # 预览根 package 的 lib target ranim preview -p package_name # 预览 package_name 包的 lib target ranim preview -p package_name --example example_name # 预览 package_name 包的 example_name 示例 -
ranim render：调用 Cargo 构建指定的 target，然后启动一个渲染应用加载编译出的 dylib，并渲染动画。ranim render # 渲染根 package 的全部场景的所有输出 ranim render scene_name # 渲染根 package 中名称为 scene_name 的场景的所有输出 ranim render -p package_name # 渲染 package_name 包的全部场景的所有输出 ranim render -p package_name --example example_name # 渲染 package_name 包的 example_name 示例中的全部场景的所有输出
1. 场景的构造
场景函数是一个签名为 fn(&mut RanimScene) 的函数，通过 #[scene] 宏标注后会自动生成对应的场景配置。
整个构造过程围绕着 &mut RanimScene，它是 ranim 中编码动画 API 的主入口。
2. 时间线
每一条被插入到场景中的时间线都有一个唯一的 TimelineId。
时间线（Timeline）是用于编码物件动画的核心结构，它内部存储了一系列动画及其展示时间。
编码动画的过程本质上是在向时间线中插入动态或静态的动画：
2.1 创建时间线
有两种方式创建时间线：
1. 创建空白时间线
let tid: TimelineId = r.insert_empty();2. 插入物件并创建时间线
通过 r.insert(item) 可以插入一个物件，自动为其创建时间线并播放 show 动画：
let square = Square::new(2.0).with(|x| {
x.set_color(manim::BLUE_C);
});
let circle = Circle::new(1.0).with(|x| {
x.set_color(manim::RED_C);
});
let r_square = r.insert(square);
let r_circle = r.insert(circle);2.2 访问时间线
时间线创建后，通过 r.timeline() 或 r.timeline_mut() 来访问：
// 获取不可变引用
let timeline_ref: &Timeline = r.timeline(r_square);
// 获取可变引用
let timeline_mut: &mut Timeline = r.timeline_mut(r_square);也可以同时访问多条时间线：
// 访问多条时间线的可变引用
let [t1, t2] = r.timeline_mut([r_square1, r_square2]);访问全部时间线：
// 类型为 &[Timeline]
let timelines = r.timelines();
// 类型为 &mut [Timeline]
let timelines = r.timelines_mut();2.3 操作时间线
Timeline 提供了以下方法用于编码动画：
| 方法 | 描述 |
|---|---|
show() | 显示时间线中的物体 |
hide() | 隐藏时间线中的物体 |
forward(secs) | 推进时间线指定秒数 |
forward_to(target_sec) | 推进时间线到指定时间点 |
play(anim) | 向时间线中插入动画 |
所有方法都返回 &mut Self，支持链式调用。
下面的例子使用一个 Square 物件创建了一个时间线，然后编码了淡入 1 秒、显示 1 秒、隐藏、显示 1 秒、淡出 1 秒的动画：
use ranim::{
anims::fading::FadingAnim, color::palettes::manim, items::vitem::geometry::Square, prelude::*,
};
#[scene]
#[output(dir = "./output/getting_started0")]
fn getting_started0(r: &mut RanimScene) {
// Equivalent to creating a new timeline then playing `CameraFrame::default().show()` on it
let _r_cam = r.insert(CameraFrame::default());
// A Square with size 2.0 and color blue
let square = Square::new(2.0).with(|square| {
square.set_color(manim::BLUE_C);
});
let r_square = r.insert_empty();
{
let timeline = r.timeline_mut(r_square);
timeline
.play(square.clone().fade_in()) // Can be written as `square.fade_in_ref()`
.forward(1.0)
.hide()
.forward(1.0)
.show()
.forward(1.0)
.play(square.clone().fade_out()); // Can be written as `square.fade_out_ref()`
}
// In the end, ranim will automatically sync all timelines and forward to the end.
// Equivalent to `r.timelines_mut().sync();`
}2.4 物件类型转换
在对物件进行动画编码时，有时需要进行类型转换。例如，Square 需要转换为更低级的 VItem 才能应用 write 和 unwrite 等动画：
use ranim::{
anims::{creation::WritingAnim, morph::MorphAnim},
color::palettes::manim,
items::vitem::{
VItem,
geometry::{Circle, Square},
},
prelude::*,
};
#[scene]
#[output(dir = "./output/getting_started1")]
fn getting_started1(r: &mut RanimScene) {
let _r_cam = r.insert(CameraFrame::default());
// A Square with size 2.0 and color blue
let square = Square::new(2.0).with(|square| {
square.set_color(manim::BLUE_C);
});
let circle = Circle::new(2.0).with(|circle| {
circle.set_color(manim::RED_C);
});
let r_vitem = r.insert_empty();
{
let timeline = r.timeline_mut(r_vitem);
// In order to do more low-level opeerations,
// sometimes we need to convert the item to a low-level item.
timeline.play(VItem::from(square).morph_to(VItem::from(circle.clone())));
timeline.play(VItem::from(circle).unwrite());
}
}在这个例子中：
- 创建了一个空白时间线
- 将
Square转换为VItem后应用morph_to动画 - 将
Circle转换为VItem后应用unwrite动画
类型转换通过 VItem::from() 或 .into() 完成，转换后的物件可以使用更多底层动画效果。
