Basic Example⁋

This example demonstrates the basic usage of ranim.

https://github.com/user-attachments/assets/dadab1ab-65e4-4cd3-bda4-b2ef97c61b0b

basic.mp4

1
use glam::DVec3;
2
use log::LevelFilter;
3
use ranim::animation::creation::WritingAnimSchedule;
4
use ranim::animation::fading::FadingAnimSchedule;
5
use ranim::components::ScaleHint;
6
use ranim::items::group::Group;
7
use ranim::items::vitem::VItem;
8
use ranim::timeline::TimeMark;
9
use ranim::utils::rate_functions::linear;
10
use ranim::{prelude::*, typst_svg};
11

12
const SVG: &str = include_str!("../../assets/Ghostscript_Tiger.svg");
13

14
#[scene]
15
struct BasicScene;
16

17
impl TimelineConstructor for BasicScene {
18
    fn construct(self, timeline: &RanimTimeline, _camera: &mut Rabject<CameraFrame>) {
19
        timeline.forward(0.2);
20

21
        let mut svg = Group::<VItem>::from_svg(SVG);
22
        svg.scale_to_with_stroke(ScaleHint::PorportionalHeight(3.0))
23
            .put_center_on(DVec3::Y * 2.0);
24
        let mut svg = timeline.insert(svg);
25

26
        let mut text = Group::<VItem>::from_svg(&typst_svg!(
27
            r#"
28
            #align(center)[
29
                #text(18pt)[Ranim]
30

31
                #text(6pt)[Hello 你好]
32
            ]
33
            "#
34
        ));
35
        text.scale_to_with_stroke(ScaleHint::PorportionalHeight(2.0))
36
            .put_center_on(DVec3::NEG_Y * 2.0);
37

38
        text.iter_mut().for_each(|item| {
39
            item.set_fill_opacity(0.8);
40
        });
41
        let mut text = timeline.insert(text);
42

43
        timeline.play(
44
            text.lagged_anim(0.2, |item| item.write())
45
                .with_total_duration(3.0)
46
                .with_rate_func(linear),
47
        );
48
        timeline.play(svg.lagged_anim(0.0, |item| item.fade_in().with_duration(3.0))); // At the same time, the svg fade in
49
        timeline.sync();
50
        timeline.insert_time_mark(
51
            timeline.duration_secs(),
52

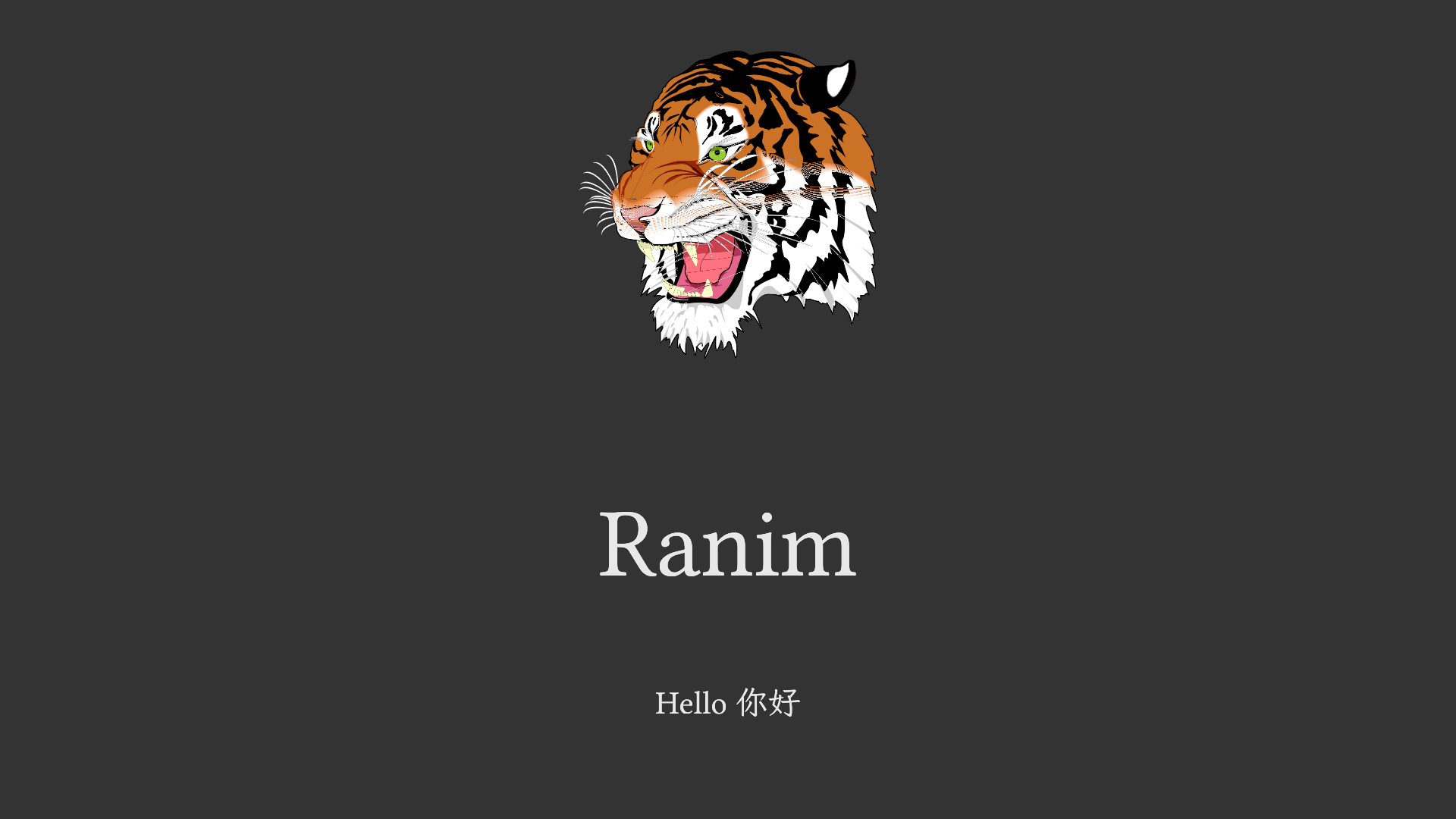

            TimeMark::Capture("preview.png".to_string()),
53
        );
54

55
        timeline.forward(0.5);
56
        timeline.play(
57
            text.lagged_anim(0.2, |item| item.unwrite())
58
                .with_total_duration(3.0)
59
                .with_rate_func(linear),
60
        );
61
        timeline.play(svg.lagged_anim(0.0, |item| item.fade_out().with_duration(3.0))); // At the same time, the svg fade in
62
        timeline.sync();
63
    }
64
}
65

66
fn main() {
67
    #[cfg(debug_assertions)]
68
    pretty_env_logger::formatted_timed_builder()
69
        .filter(Some("ranim"), LevelFilter::Trace)
70
        .init();
71
    #[cfg(not(debug_assertions))]
72
    pretty_env_logger::formatted_timed_builder()
73
        .filter(Some("ranim"), LevelFilter::Info)
74
        .init();
75
    render_scene(BasicScene, &AppOptions::default());
76
}
77
