use std::f64::consts::PI;
use ranim::{
anims::transform::TransformAnim,
color::{HueDirection, palettes::manim},
glam::{DVec3, dvec2},
items::vitem::geometry::RegularPolygon,
prelude::*,
utils::rate_functions::smooth,
};
use ranim_core::animation::Eval;
use ranim_items::vitem::geometry::anchor::Origin;
#[scene]
#[output(dir = "regular_polygon")]

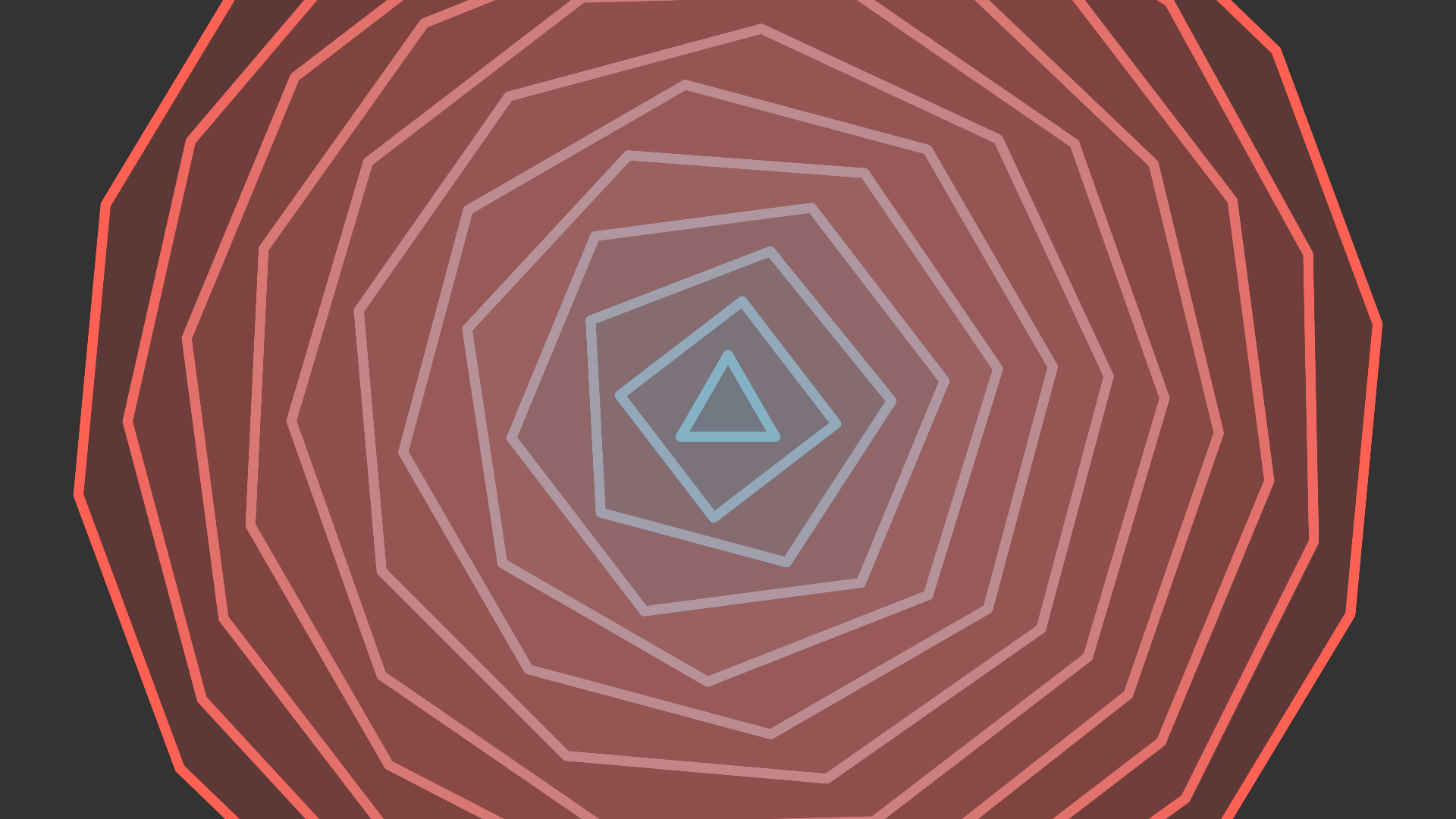

pub fn regular_polygon(r: &mut RanimScene) {
let _r_cam = r.insert(CameraFrame::default());
let frame_size = dvec2(8.0 * 16.0 / 9.0, 8.0);
let max_radius = frame_size.x.max(frame_size.y) / 2.0 * 0.9;
let n_layers = 12;
let total_rotation = PI / 2.0;
let start_color = manim::BLUE_C;
let end_color = manim::RED_C;
let radii: Vec<f64> = (0..n_layers)
.map(|i| max_radius * (i + 1) as f64 / n_layers as f64)
.collect();
let mut polygons = (0..n_layers)
.map(|i| {
let sides = i + 3;
let t = i as f32 / (n_layers - 1).max(1) as f32;
let color = start_color.lerp(end_color, t, HueDirection::Increasing);
RegularPolygon::new(sides, 0.0).with(|p| {
p.set_stroke_color(color);
p.stroke_width = 0.05;
p.set_fill_color(color.with_alpha(0.08));
})
})
.collect::<Vec<_>>();
let r_polygons = r.insert_empty();
r.timeline_mut(r_polygons).play(
polygons
.iter_mut()
.zip(radii.iter())
.map(|(poly, &target_radius)| {
poly.transform(|p| {
p.radius = target_radius;
})
.with_rate_func(smooth)
})
.collect::<Vec<_>>()
.lagged_raw(0.2)
.with_duration(1.0),
);
r.timelines_mut().sync();
let rotations: Vec<f64> = (0..n_layers)
.map(|i| total_rotation * (n_layers - i) as f64 / n_layers as f64)
.collect();
r.timeline_mut(r_polygons).play(
polygons
.iter_mut()
.zip(rotations.iter())
.map(|(poly, &rot)| {
poly.transform(|p| {
p.rotate_at(rot, DVec3::Z, Origin.locate(&p.outer_circle()));
})
.with_rate_func(smooth)
})
.collect::<Vec<_>>()
.lagged_raw(0.2)
.with_duration(1.0),
);
r.timelines_mut().sync();
r.insert_time_mark(
r.timelines().max_total_secs(),
TimeMark::Capture("preview.png".to_string()),
);
r.timelines_mut().forward(0.5);
r.timeline_mut(r_polygons).play(
polygons
.iter_mut()
.rev()
.map(|poly| {
poly.transform(|p| {
p.radius = 0.0;
})
.with_rate_func(smooth)
})
.collect::<Vec<_>>()
.lagged_raw(0.2)
.with_duration(1.0),
);
r.timelines_mut().sync();
}
trait LaggedRawExt<T> {
fn lagged_raw(self, lag_ratio: f64) -> ranim_core::animation::AnimationCell<Vec<T>>;
}
impl<T: Clone + 'static> LaggedRawExt<T> for Vec<ranim_core::animation::AnimationCell<T>> {
fn lagged_raw(self, lag_ratio: f64) -> ranim_core::animation::AnimationCell<Vec<T>> {
ranim_anims::lagged::Lagged::new(lag_ratio, self).into_animation_cell()
}
}
