Arc⁋

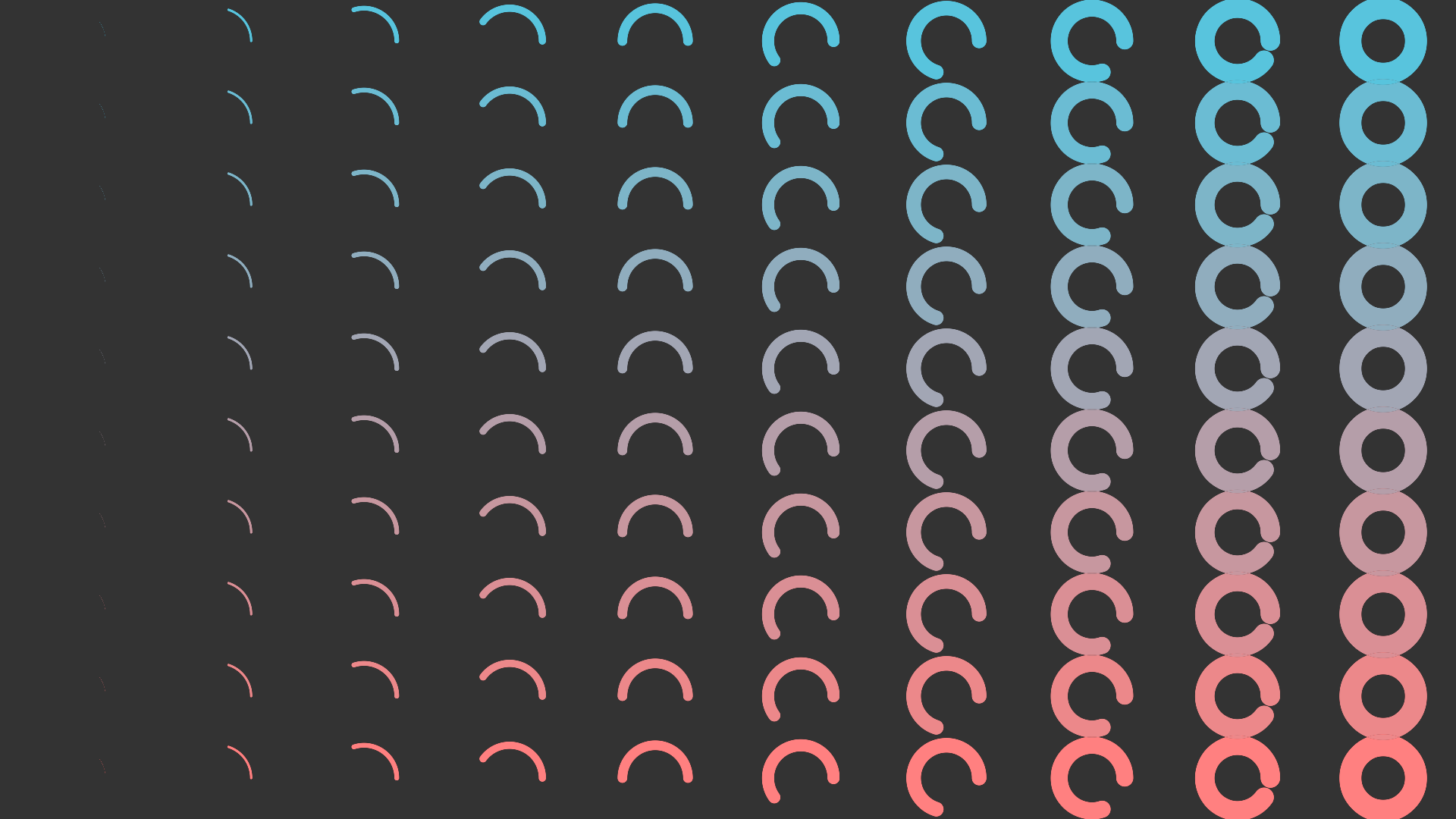

This example demonstrates Arc.

https://github.com/user-attachments/assets/4f8c6f36-e6b7-429b-8d2a-91c21e17dec2

arc.mp4

1
use glam::dvec2;
2
use itertools::Itertools;
3
use log::LevelFilter;
4
use ranim::animation::fading::FadingAnimSchedule;
5
use ranim::color::HueDirection;
6
use ranim::components::Anchor;
7
use ranim::items::group::Group;
8
use ranim::items::vitem::Arc;
9
use ranim::prelude::*;
10
use ranim::timeline::TimeMark;
11

12
#[scene]
13
struct ArcScene;
14

15
impl TimelineConstructor for ArcScene {
16
    fn construct(self, timeline: &RanimTimeline, _camera: &mut Rabject<CameraFrame>) {
17
        // let frame_size = app.camera().size;
18
        let frame_size = dvec2(8.0 * 16.0 / 9.0, 8.0);
19
        let frame_start = dvec2(frame_size.x / -2.0, frame_size.y / -2.0);
20

21
        let start_color = color!("#FF8080FF");
22
        let end_color = color!("#58C4DDFF");
23

24
        let nrow = 10;
25
        let ncol = 10;
26
        let step_x = frame_size.x / ncol as f64;
27
        let step_y = frame_size.y / nrow as f64;
28

29
        let arcs = (0..nrow)
30
            .cartesian_product(0..ncol)
31
            .map(|(i, j)| {
32
                let (i, j) = (i as f64, j as f64);
33

34
                let angle = std::f64::consts::PI * (j + 1.0) / ncol as f64 * 360.0 / 180.0;
35
                let radius = step_y / 2.0 * 0.8;
36
                let color = start_color.lerp(
37
                    end_color,
38
                    i as f32 / (nrow - 1) as f32,
39
                    HueDirection::Increasing,
40
                );
41
                let offset =
42
                    frame_start + dvec2(j * step_x + step_x / 2.0, i * step_y + step_y / 2.0);
43
                let mut arc = Arc { angle, radius }.build();
44
                arc.set_stroke_width(0.12 * (j as f32 + 0.02) / ncol as f32)
45
                    .set_stroke_color(color)
46
                    .set_fill_color(color.with_alpha(0.0))
47
                    .put_anchor_on(Anchor::center(), offset.extend(0.0));
48
                arc
49
            })
50
            .collect::<Group<_>>();
51

52
        let mut arcs = timeline.insert(arcs);
53
        let arcs_fade_in = arcs.lagged_anim(0.2, |item| item.fade_in());
54
        timeline.play(arcs_fade_in.with_total_duration(3.0)).sync();
55

56
        timeline.insert_time_mark(
57
            timeline.duration_secs(),
58
            TimeMark::Capture("preview.png".to_string()),
59
        );
60
    }
61
}
62

63
fn main() {
64
    #[cfg(debug_assertions)]
65
    pretty_env_logger::formatted_timed_builder()
66
        .filter(Some("ranim"), LevelFilter::Trace)
67
        .init();
68
    #[cfg(not(debug_assertions))]
69
    pretty_env_logger::formatted_timed_builder()
70
        .filter(Some("ranim"), LevelFilter::Info)
71
        .init();
72

73
    #[cfg(feature = "app")]
74
    run_scene_app(ArcScene);
75
    #[cfg(not(feature = "app"))]
76
    render_scene(ArcScene, &AppOptions::default());
77
}
78
